ATOROZ ATZ‑GR – Copper Bonded Earth Rod (254µm)
Product Description

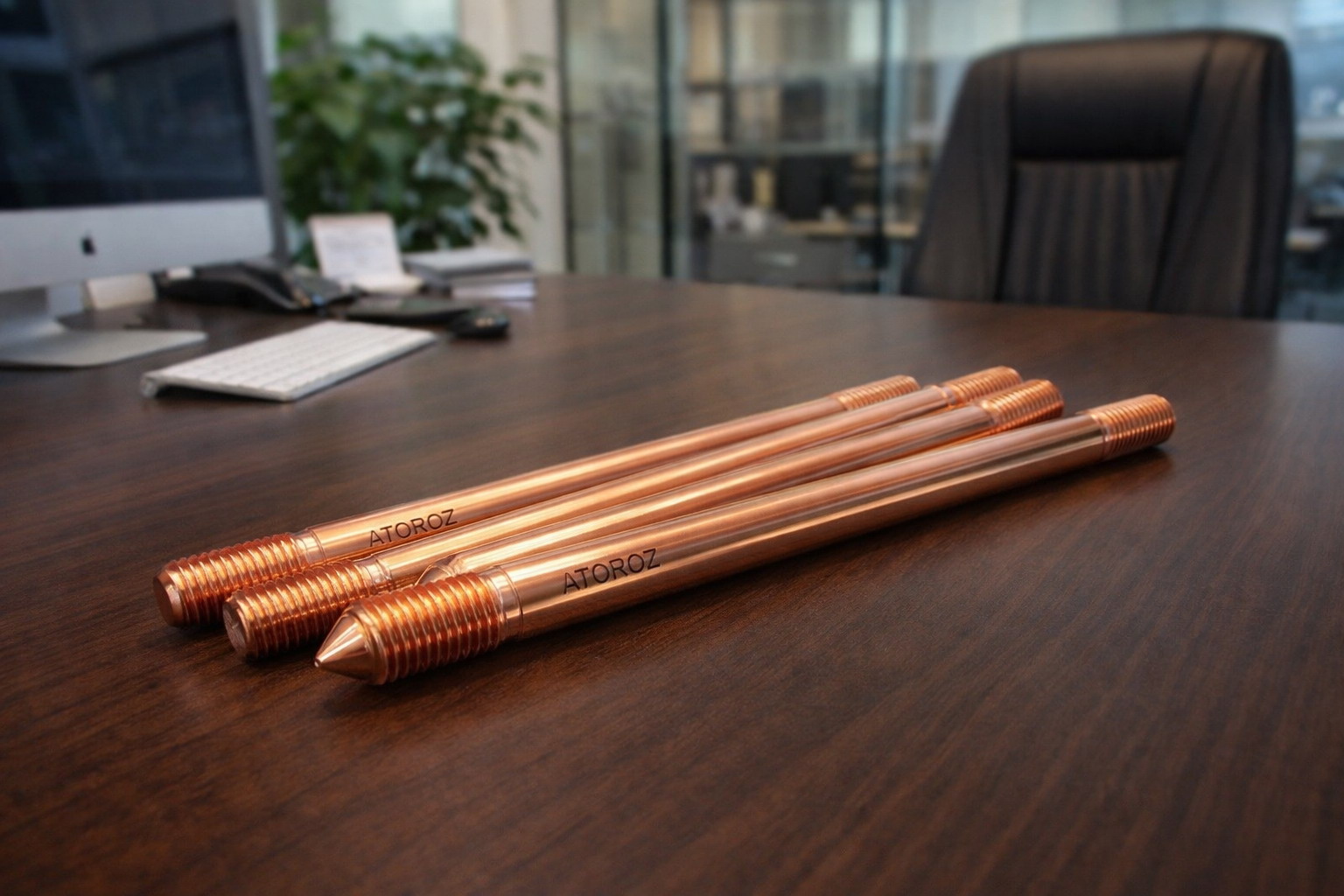

The ATOROZ ATZ‑GR Copper Bonded Earth Rod is engineered for superior grounding performance in electrical and lightning protection systems. Manufactured by molecularly bonding 99.9% pure electrolytic copper onto a high‑tensile steel core, it ensures durability, conductivity, and long service life. With a copper thickness of ≥ 254 microns, the rod provides excellent corrosion resistance and reliable current dissipation into the earth.
- Copper Bonded Construction — Pure electrolytic copper molecularly bonded to steel core.
- High Tensile Strength — Steel core provides mechanical durability during installation.
- Corrosion Resistance — ≥ 254 µm copper thickness ensures long‑term performance.

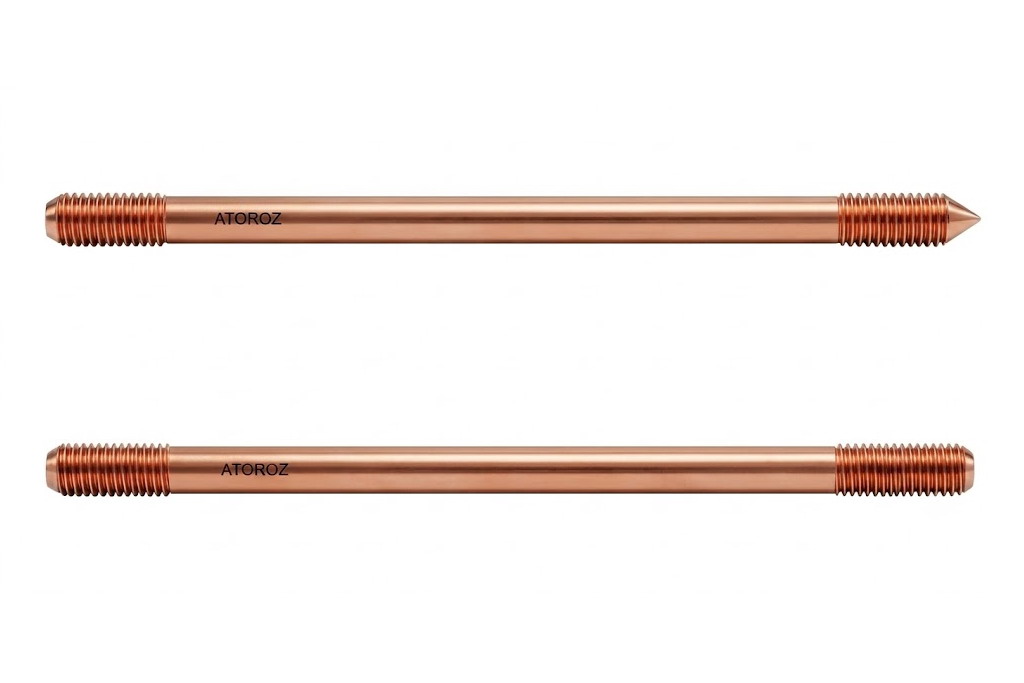

- Threaded Design — Facilitates easy coupling and extension.
- Wide Range of Sizes — Available in diameters 5/8" (14.2 mm) and 3/4" (17.2 mm), lengths from 1.22 m to 3.05 m.
- Applications — Electrical grounding, lightning protection, telecom grounding, industrial earthing systems.
Technical Specifications
| Model | Nominal Dia. (inch) | Actual Dia. (mm) | Type | Length (ft / m) | Weight (kg) |
|---|---|---|---|---|---|
| ATZ‑GR 584 | 5/8" | 14.2 | Threaded | 4 ft / 1.22 m | 1.54 |
| ATZ‑GR 586 | 5/8" | 14.2 | Threaded | 6 ft / 1.83 m | 2.31 |
| ATZ‑GR 588 | 5/8" | 14.2 | Threaded | 8 ft / 2.44 m | 3.08 |
| ATZ‑GR 5810 | 5/8" | 14.2 | Threaded | 10 ft / 3.05 m | 3.80 |
| ATZ‑GR 344 | 3/4" | 17.2 | Threaded | 4 ft / 1.22 m | 2.23 |
| ATZ‑GR 346 | 3/4" | 17.2 | Threaded | 6 ft / 1.83 m | 3.35 |
| ATZ‑GR 348 | 3/4" | 17.2 | Threaded | 8 ft / 2.44 m | 4.46 |
| ATZ‑GR 3410 | 3/4" | 17.2 | Threaded | 10 ft / 3.05 m | 5.58 |
Applications
- Electrical grounding for residential, commercial, and industrial installations.
- Lightning protection for buildings and infrastructure.
- Telecommunications grounding ensuring stable signal performance.
- Substation earthing for power distribution safety.
Benefits
- Long service life due to copper bonding.
- High mechanical strength prevents bending or breakage during driving.
- Reliable electrical conductivity for safe current dissipation.
- Compatible with standard clamps and exothermic welding systems.
