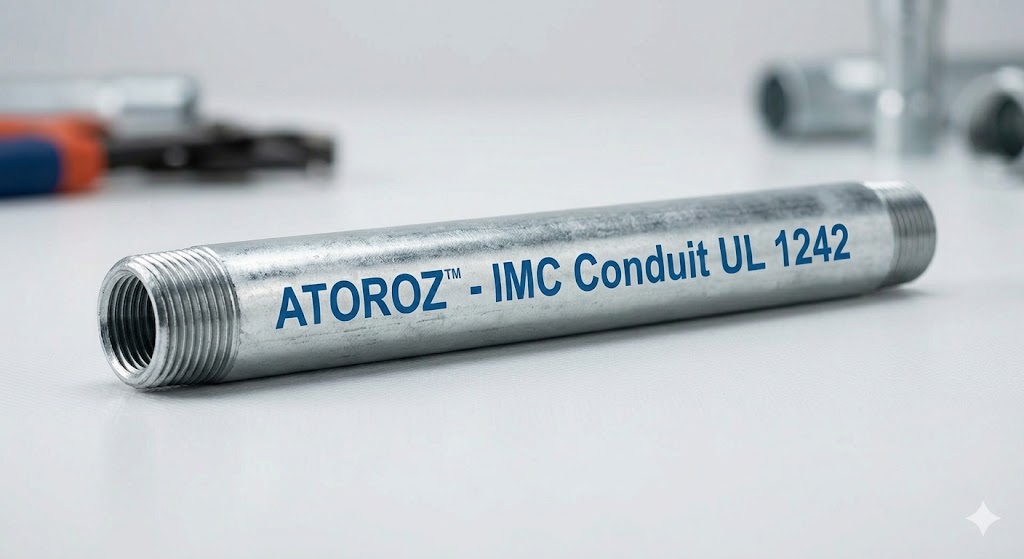

ATOROZ Intermediate Metal Conduit (IMC)
Product Description
ATOROZ Intermediate Metal Conduit (IMC) is a premium-grade threaded steel conduit designed to provide superior mechanical protection and corrosion resistance for electrical wiring systems. Manufactured in accordance with ANSI C80.6 and UL 1242, ATOROZ IMC combines the strength of rigid steel conduit with a lighter wall construction, offering an efficient and cost-effective solution for commercial, industrial, utility, and infrastructure projects.
Produced from high-quality Class 3 Pre-Galvanized Steel or Class 4 Hot-Dip Galvanized Steel, ATOROZ IMC features a durable galvanized white finish that enhances corrosion protection and extends service life in demanding environments. The conduit is supplied with precision-cut threads and is compatible with standard IMC threaded fittings and accessories.
ATOROZ IMC is suitable for both indoor and outdoor installations where robust mechanical protection and reliable grounding continuity are required.
Features
- Manufactured in compliance with ANSI C80.6 and UL 1242
- High mechanical strength for demanding applications
- Lighter than Rigid Metal Conduit (RMC) while maintaining excellent durability
- Precision-threaded ends for secure installation
- Excellent corrosion resistance
- Smooth internal surface for easy conductor pulling
- Suitable for exposed, concealed, indoor, and outdoor installations
- Provides an effective equipment grounding path when installed in accordance with applicable electrical codes
- Compatible with standard IMC threaded couplings and fittings
- Available in Class 3 Pre-Galvanized Steel and Class 4 Hot-Dip Galvanized Steel
Technical Specifications
| Item | Specification |
|---|---|
| Brand | ATOROZ |
| Product Type | Intermediate Metal Conduit (IMC) |
| Standard Compliance | ANSI C80.6, UL 1242 |
| Material Option 1 | Class 3 Pre-Galvanized Steel |
| Material Option 2 | Class 4 Hot-Dip Galvanized Steel |
| Surface Finish | Galvanized White |
| Conduit Type | Threaded Intermediate Metal Conduit |
| Corrosion Protection | Zinc-coated galvanized steel |
| Connection Type | Threaded |
| Installation | Indoor and Outdoor |
| Grounding Continuity | Provides grounding path when installed according to code requirements |
| Fittings Compatibility | Standard IMC threaded fittings and accessories |
| Application | Electrical power, control, communication, and protection systems |
Typical Applications
- Commercial buildings
- Industrial plants and factories
- Power generation and distribution facilities
- Data centers
- Telecommunications infrastructure
- Oil and gas facilities
- Transportation infrastructure
- Fire alarm and life safety systems
- Utility and municipal projects
Available Sizes
ATOROZ IMC conduit is available in standard trade sizes:
| Trade Size | Metric Equivalent (Approx.) |
|---|---|
| 1/2″ | 16 mm |
| 3/4″ | 21 mm |
| 1″ | 27 mm |
| 1-1/4″ | 35 mm |
| 1-1/2″ | 41 mm |
| 2″ | 53 mm |
| 2-1/2″ | 63 mm |
| 3″ | 78 mm |
| 3-1/2″ | 91 mm |
| 4″ | 103 mm |
Additional sizes and lengths may be available upon request.
Material Options
Class 3 Pre-Galvanized Steel
- Uniform zinc coating applied prior to tube forming
- Suitable for general commercial and industrial environments
- Cost-effective corrosion protection
Class 4 Hot-Dip Galvanized Steel
- Heavy-duty zinc coating applied after fabrication
- Enhanced corrosion resistance
- Recommended for harsh, humid, or outdoor environments
Finish
- Galvanized White
Ordering Information
ATOROZ Intermediate Metal Conduit (IMC)
- Standards: ANSI C80.6 / UL 1242
- Material: Class 3 Pre-Galvanized Steel or Class 4 Hot-Dip Galvanized Steel
- Finish: Galvanized White
- Connection: Threaded
- Standard Length: 3.05 m (10 ft)
- Sizes: 1/2″ to 4″ Trade Size
ATOROZ – Reliable Steel Conduit Solutions for Professional Electrical Installations.
