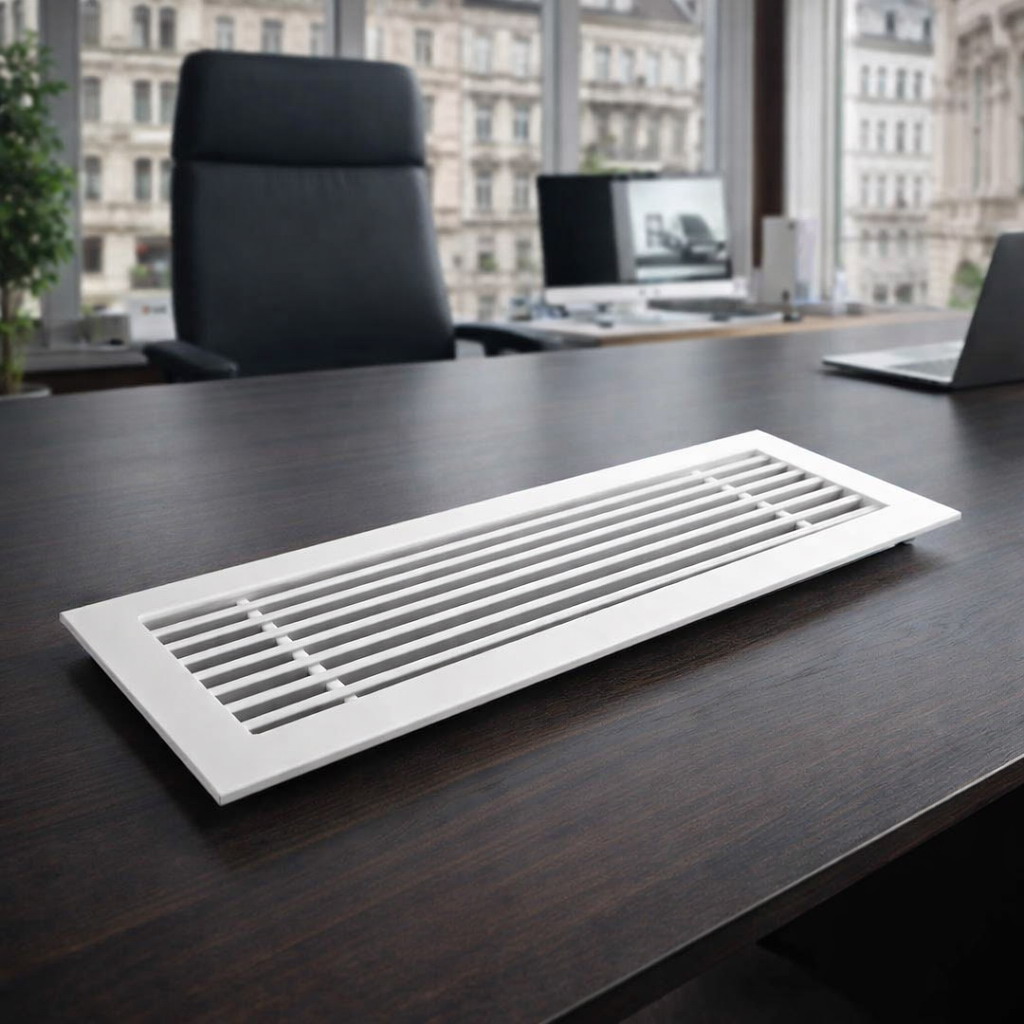

ATOROZ Linear Bar Grilles
Model: LBZ
Material: Aluminium
Finish: Powder‑Coated White (RAL 9010 / RAL 9016)
Product Description
The Linear Bar Grille is engineered for high‑performance air supply and return applications in residential, commercial, and industrial environments. Constructed from high‑grade aluminium, it delivers excellent rigidity, corrosion resistance, and long‑term durability.
Its sleek linear‑bar design provides smooth, uniform airflow with minimal noise, making it ideal for architectural spaces requiring both functionality and visual appeal. The grille can be installed on ceilings, walls, or duct openings, with options for surface‑mount or recessed installation.
- Aluminium construction — lightweight, corrosion‑resistant, long‑lasting
- Linear bar design — optimized for smooth airflow and low noise
- Powder‑coated finish — durable, scratch‑resistant, and aesthetically clean
- Versatile installation — suitable for ceilings, walls, and duct openings
- Low maintenance — easy to clean and resistant to dust accumulation
- Architectural appearance — modern, minimalistic, suitable for premium interiors
Applications
- Residential HVAC supply/return
- Commercial buildings (offices, malls, hotels)
- Industrial ventilation systems
- Architectural interior design projects
- Ceiling and wall duct terminations
Technical Specifications
| Attribute | Details |
|---|---|
| Product Type | Linear Bar Grille |
| Material | Aluminium |
| Finish | Powder‑coated (White / Black / Custom) |
| Blade Orientation | Linear bars (fixed) |
| Blade Spacing | 6–12 mm (customizable) |
| Frame Thickness | 1.0–1.2 mm |
| Mounting Options | Surface‑mount / Recessed |
| Applications | Air supply & return for HVAC systems |
| Suitable Locations | Homes, offices, malls, hotels, industrial buildings |
| Customization | Size, color, blade spacing, frame depth |
Available Sizes (Common Standards)
- 300 × 100 mm
- 600 × 150 mm
- 1200 × 200 mm
- 1500 × 250 mm
- 2000 × 300 mm (Custom sizes available upon request)
Air Flow Rate Table (Typical Performance Data)
- Airflow Efficiency: Linear bars allow smooth directional airflow
- Noise Reduction: Low turbulence design minimizes sound levels
- Durability: Aluminium body withstands humidity and long‑term use
- Aesthetic Integration: Slim profile blends into modern architecture
